| Harness Wiring International Harvester C-series rear electric window - 1966 only - 261283C91 |
|
|
|
|
Year Range: |
1966 - 1966 |
| Catalog Number: |
TP20167 |
| IH Number: |
261283C91 |
| Vehicles: |
Travelall |
|
| Related Parts: |
|
|
|
|
|
|
|
Call to Order:
888-288-0550
|
|
|
|
|
|
| PRICE: |
|
$224.56 Each
|
|
|
 |
|
|
|
| Detailed Description: |

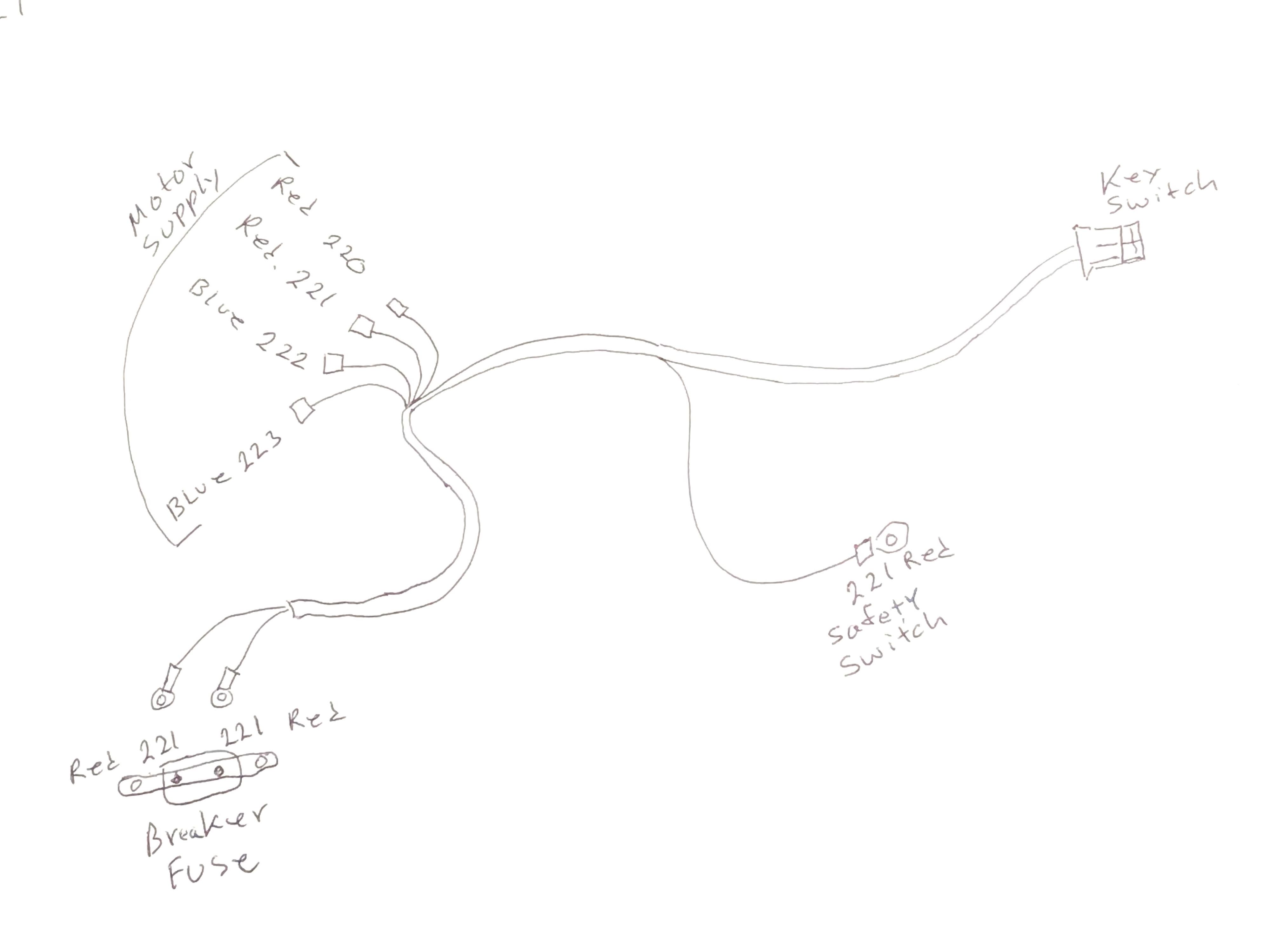

Wiring harness for the inside of tail gate for electric roll up window.
INSTALLATION TIPS:
THIS CIRCUIT IS ISOLATED FROM GROUND. IT IS POSSIBLE THAT THE SWITCH GOVERNS THE NEGATIVE SIDE OF THE CIRCUIT. I believe that it always has power and it is turned on and off by turning on and off the ground. We just don't know because IH did not leave any service or detailed info on this tail gate.
Make sure you are using your meter to separate hots from grounds when installing this harness.
IH did not document this in their manuals. This is the our best estimate only.
We do not know the exact arrangement for the motor colors but, Red is probably up power, Yellow is probably down power. Black and green are most likely grounds.
Motor wires: Red- power up, Yellow power down, Green-alternate ground, Black - Ground

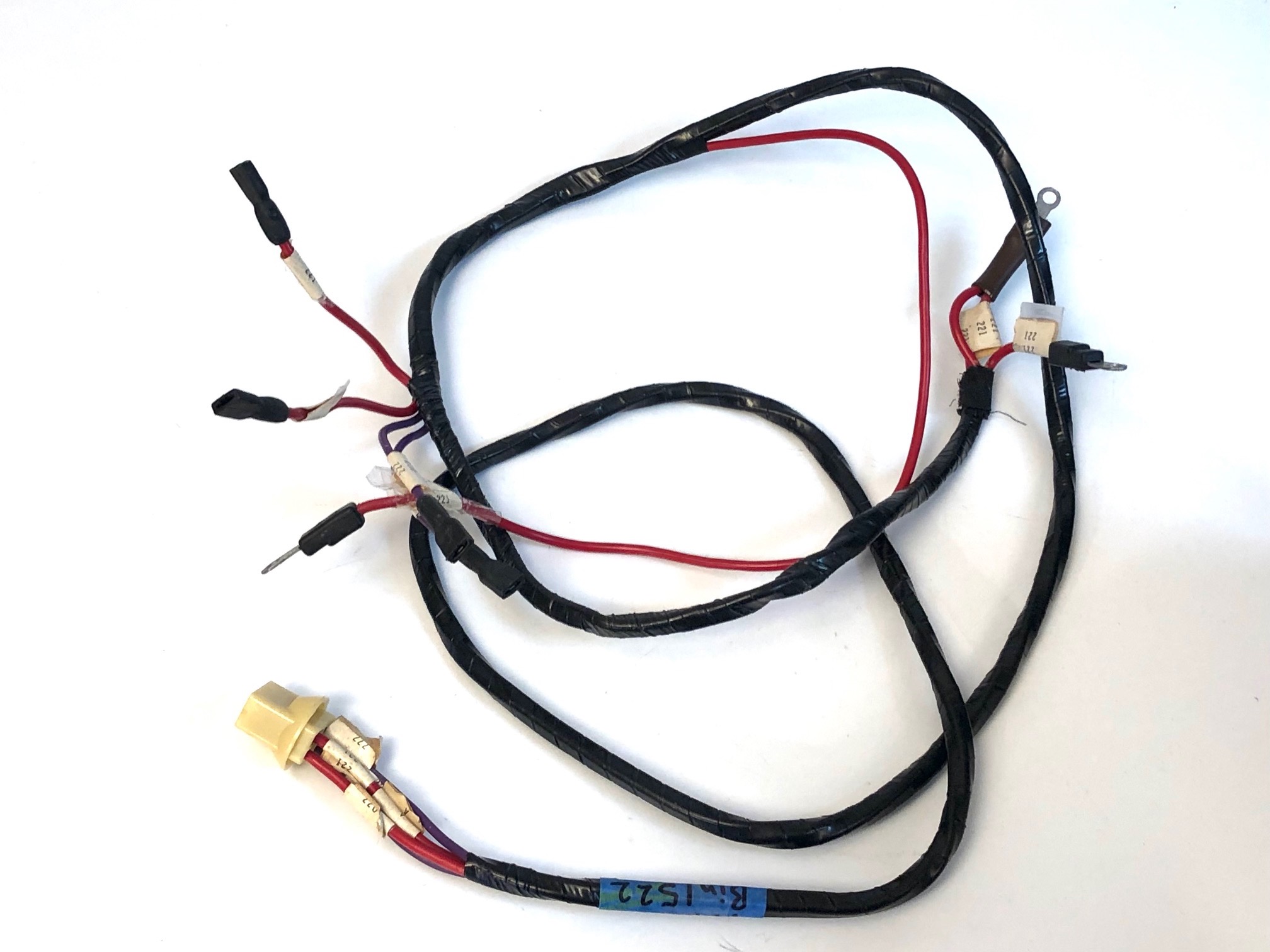

Harness in photo is original International Harvester wiring harness! We make a NEW copy of this one. If you need updates or additions, it will have to be documented to match exactly. |
|
